Double Nozzles Automatic Mineral Water Bottle Automatic Soap Filler Detergent Liquid Filling Machine

automatic liquid filling machine

double nozzle soap filler

mineral water bottle filler

Contacte-nos

Solicite um orçamento

Double Nozzles Automatic Mineral Water Bottle Automatic Soap Filler Detergent Liquid Filling Machine

Detalhes do produto

机器产能:

500 garrafas por hora

Aplicação:

食品, 饮料, 化学品 (alimentos, bebidas, produtos químicos)

Tipo de Embalagem:

易拉??, 瓶, 自立袋, 包, Pouch

embalagem material:

Material de madeira

Grau de automação:

Total automático

Tipo de Motor:

气动

Pressão elétrica:

220 V

Área de origem:

Guangdong, China

Marca:

Sammi.

尺寸 ((长×宽×高):

2000*550 * 1800mm

período de conservação:

1 ano

核心卖点:

Alta produtividade

Material de enchimento:

Água, óleo, suco

Precisão de enchimento:

1G, 液体 ≤ ± 1%,糊状物 ≤ ± 2%

机械测试报告:

可提供

Verificação de saída de vídeo:

可提供

核心组件:

PLC

填充范围:

(10-100 ml) * 6

pressão atmosférica:

4-6Kg/cm2

Velocidade de carregamento:

30-50 frascos/minuto

Conservar o tempo:

1 ano

Cabeçalho de Trabalho:

Preço:

concorrência

质量:

Conforme os padrões de exportação

应用程序:

医疗

营销类型:

2020年新产品

类型:

装机

状态:

Novos

适用行业:

Produção, 食品饮料加工厂, 食品店, 餐饮店

Localização do showroom (em quais países no exterior existem salas de amostra):

Nenhum

核心组件质保期:

1 ano

Peso:

450 kg

Destacar:

automatic liquid filling machine

double nozzle soap filler

mineral water bottle filler

Termos de pagamento e envio

Quantidade de ordem mínima

1 conjunto

Preço

$3,000-3,600 / set

PRODUTOS CONEXOS

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Obtenha o melhor preço

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Obtenha o melhor preço

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Obtenha o melhor preço

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

4 head liquid filling machine

Product Description

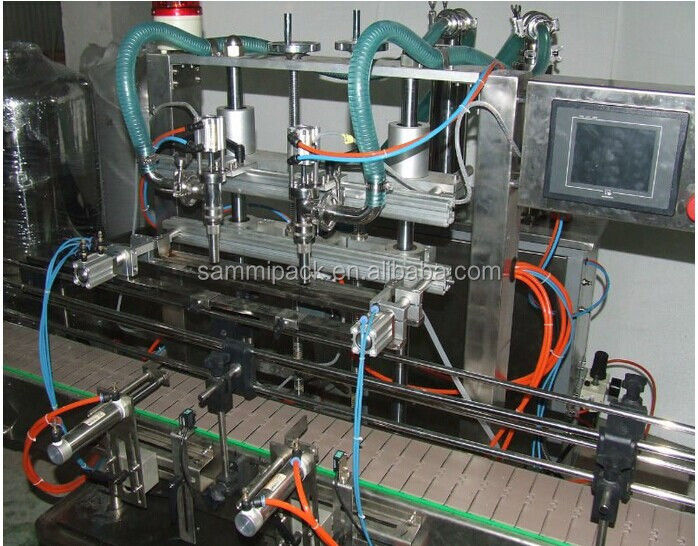

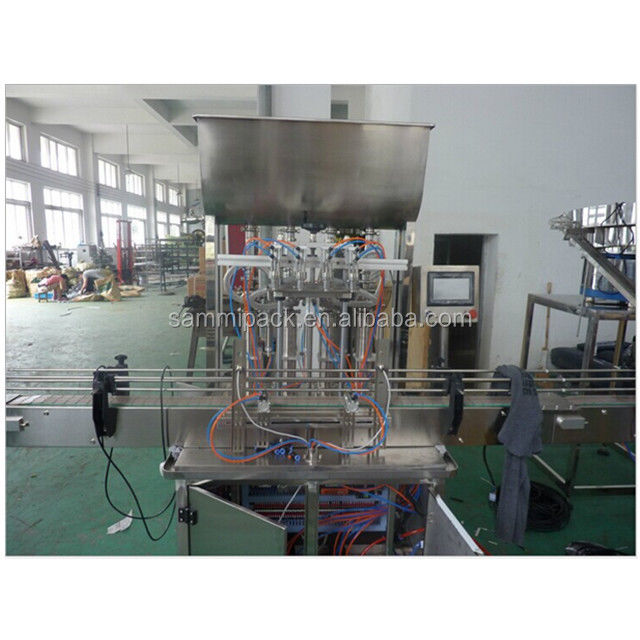

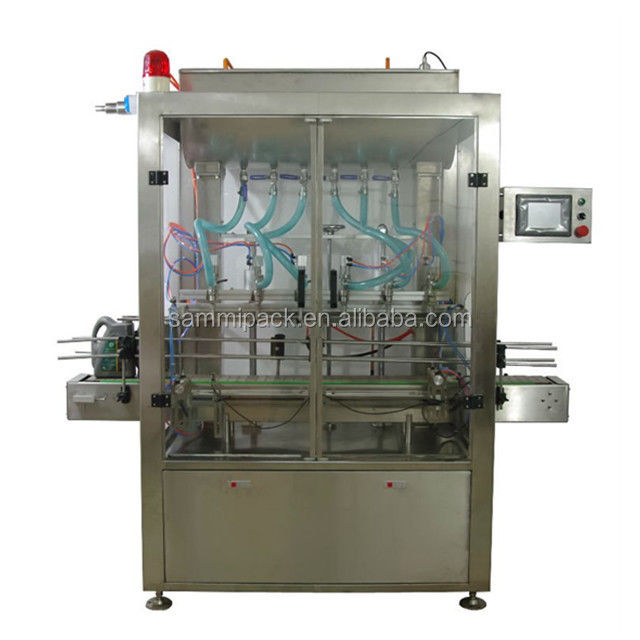

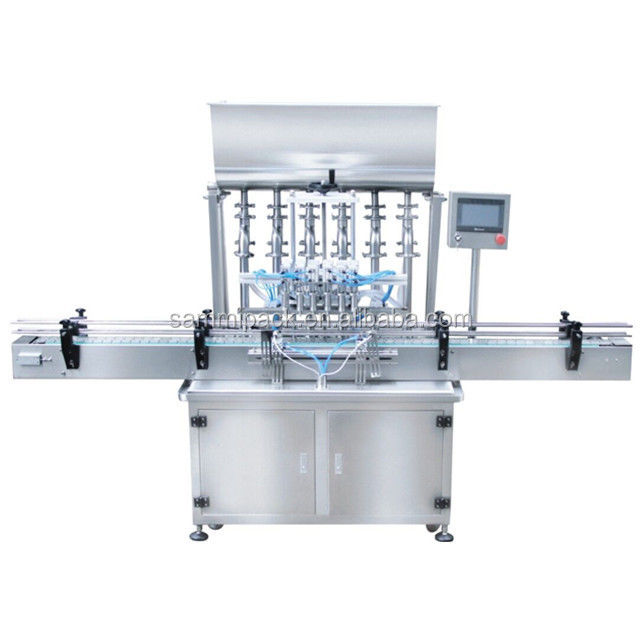

Automatic Liquid Filling Production Line: quick and accurate filling with Taiwan's AirTac component.

Automatic Liquid Filling Production Line 6 Nozzle:

This Model is special for Filling Production Line, and it is simple and reasonable in design, high in accuracy and easy in operation. Suitable for filling liquid in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises' requirements. This machine is the semi-automatic double piston liquid filling machine, working under the state without electricity, it is safer to operate. This machine has two filling heads in-phase, improving the work efficiency. And the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan's AirTac. The part contacting materials is made of 316L stainless steel. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device.

Parameter of 6 head filling machine

Machine model	SM-100-2	SM-300-2	SM-500-2	SM-1000-2	SM-2500-2	SM-5000-2
Filling range	(10-100ml)×6	(30-300ml)×2	(50-500ml)×2	(100-1000ml)×2	(250-2500ml)×2	(500-5000ml)×2
Air pressure	4-6kg/cm²	4-6kg/cm²	4-6kg/cm²	5-8kg/cm²	5-8kg/cm²	5-8kg/cm²
Air pressure	4-6kg/cm²	4-6kg/cm²	4-6kg/cm²	5-8kg/cm²	5-8kg/cm²	5-8kg/cm²
Filling speed	30-50bottles/min	30-50bottles/min	30-50bottles/min	30-50bottles/min	30-50bottles/min	20-40bottles/min
Filling precision	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%

Packaging & Shipping

Payment Term:	T/T, L/C, Western Union, PayPal, Credit card, trade assurance
Package:	export standard wooden case & cartons, honeycomb paperboard case
Delivery Time:	1-3 days after payment
transportation:	by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc)
Shipping Time:	A, by express:about 5 days to arrive shipping destination,door to door service
	B, by air: about 7 days to destination airport
	C, by sea:15-30 days to destination port
