High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine

High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine

L type sealing heat shrink machine

high speed shrink wrapping machine

automatic heat sealing packaging machine

Contacte-nos
Solicite um orçamento
High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine
Detalhes do produto
Aplicação:
饮料, 化学品, 日用品, 食品, 机械 & 五金
Tipo de Embalagem:
Caixa de papel
embalagem material:
Material de madeira
Grau de automação:
Total automático
Tipo de Motor:
Eletrodomésticos
Pressão elétrica:
220 V
Área de origem:
Guangdong, China
Marca:
Sammi.
尺寸 ((长×宽×高):
C1600 x L719 x A1444MM
售后服务系统 Sistema de serviço:
Suporte online, suporte técnico por vídeo
período de conservação:
1 ano
核心卖点:
Duração de vida
机械测试报告:
可提供
Verificação de saída de vídeo:
可提供
核心组件:
电机
Moguer:
FQL-5545 + BSD-4520
Dimensões do túnel retrátil:
C1200 x L450 x A200 mm
embalagem tamanho:
Máximo W350 x H150 mm
Temperatura::
Máximo 200 oC
Velocidade da esteira::
0-10 m/min
Carga do transportador:
Máximo 10 kg
包装材料::
PVC POF PP PE
电源:
220 V/50 Hz/60 Hz
功耗::
12 kW
Dimensões Gerais::
C1600 x L719 x A1444MM
类型:
Máquina de embalagem
适用行业:
维修店
Serviço Fora da Garantia:
视频技术支持, 在线支持
提供本地服务的地点 ((Em quais países há serviços no estrangeiro):
Nenhum
Localização do showroom (em quais países no exterior existem salas de amostra):
Nenhum
状态:
Novos
营销类型:
Novos produtos de 2020
核心组件质保期:
1 ano
Peso:
160 kg
认证:
CE e ISO-900
Destacar:

L type sealing heat shrink machine

,

high speed shrink wrapping machine

,

automatic heat sealing packaging machine

Termos de pagamento e envio
Quantidade de ordem mínima
1 conjunto
Preço
$3,000-3,500 / set
PRODUTOS CONEXOS
Bom preço. Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE on-line

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Obtenha o melhor preço
Bom preço. Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE on-line

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Obtenha o melhor preço
Bom preço. Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter on-line

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Obtenha o melhor preço
Bom preço. Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry on-line

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Obtenha o melhor preço
Contacte-nos
Contacte agora
Descrição do produto

Automatic FQL-5545 +BSD-4520Shrink wrapping mahicne with L-Type Sealer



Product description

 Specifications

High Speed L type sealing cuting machine& Heat Shrink machine

Widely used in batch production and packaging. It has high efficiency, automatic film feeding and punching device, manual adjusting conductive film system and manual adjusting feeding and conveying platform. Suitable for products of different widths and heights.

Automatic Side Sealer is specially designed for packaging long products such as profiles, rails, bars, etc., and at random lengths as well.It,s comfortable and efficient to handle by its open and accessible design. High operating efficiency ensures Fully Automatic L-sealer a first-class packaging quality.

Electronic temperature control system, when the temperature of the shrinking furnace reaches the set temperature, the machine automatically stops heating, so that the shrinking furnace can save electricity, Adopt brand speed control circuit board, the shrinking transmission is more stable and better shrink effect.

Main feature:
Packing product without length limitation
Excellent perforation system allows the pin easily to change and adjust
The sealing system capable of produce smooth and firm sealing line
With safety protection

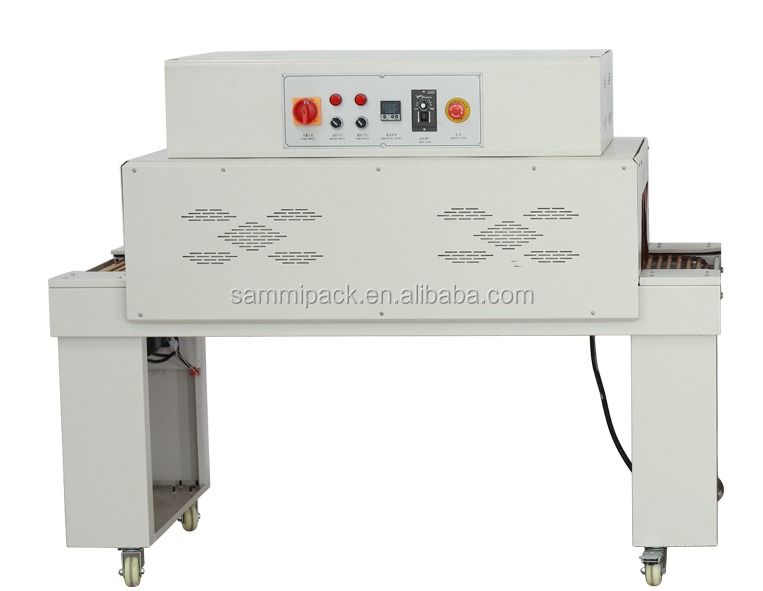

Shrink Tunnel



Shrink Tunnel Size

 L1200 x W450 x H200 MM
Package Size Max. W350 x H150 MM
Temperature Max. 200 oC adjustable

Conveyor Speed

 0-10 M/MIN
Conveyor Load: Max. 10 KGS
Package material: PVC POF PP PE
Power  Supply 220 V/50 HZ/60HZ
Power Consumption 12KW
Net Weight 160KGS
Overall Size L1600 x W719 x H1444MM





L Type Sealing Machine



Max package size:  (W+H)< 450mm,(L+H)< 550mm;(H)≤140mm
Cycle Time

15-30PCS/ MIN
Sealing time 0.2s-1s
Film thickness 0.012-0.06mm
Power Supply 220 V, 50 HZ
Air pressure 0.5mpa
Power Consumption: 1.1KW
Heating power: 800W
Package material: POF
Overall Size  L1760 x W940x H1580 MM
Net Weight 300 KGS

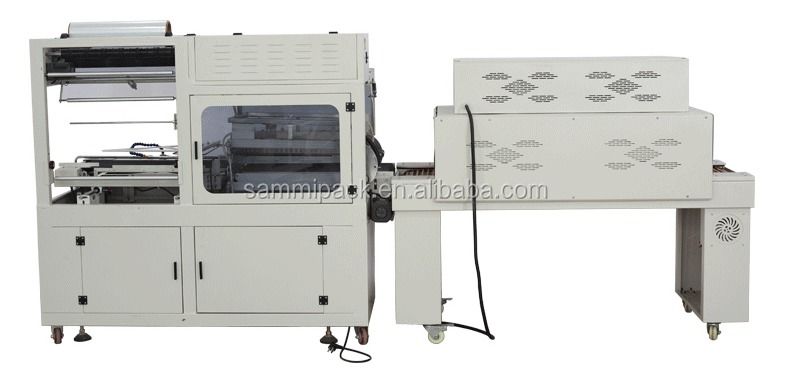

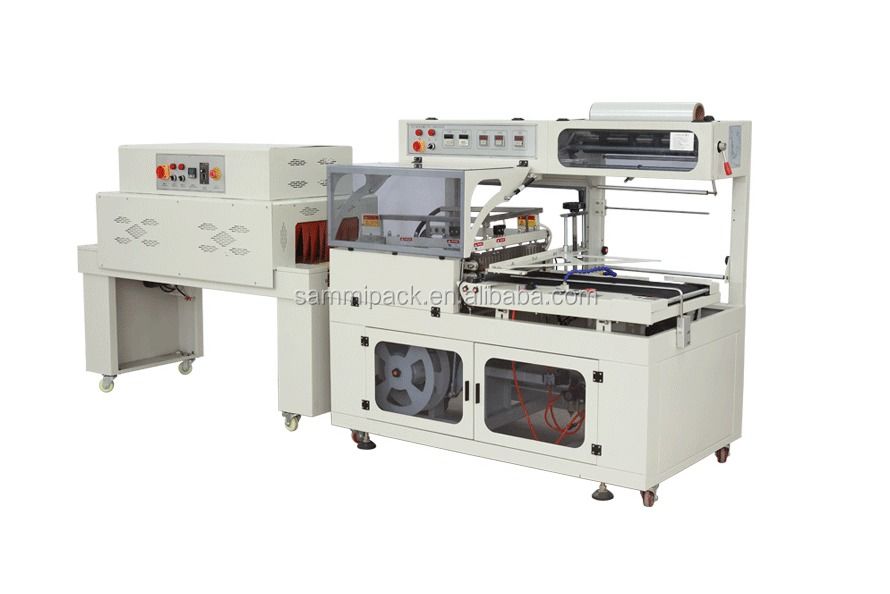

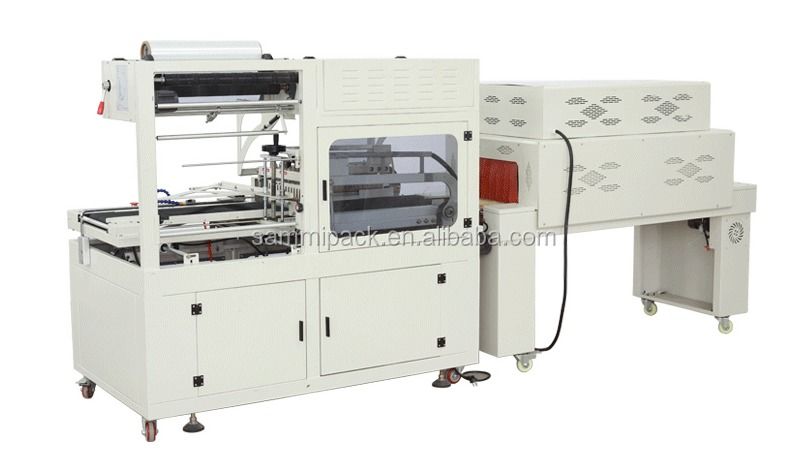

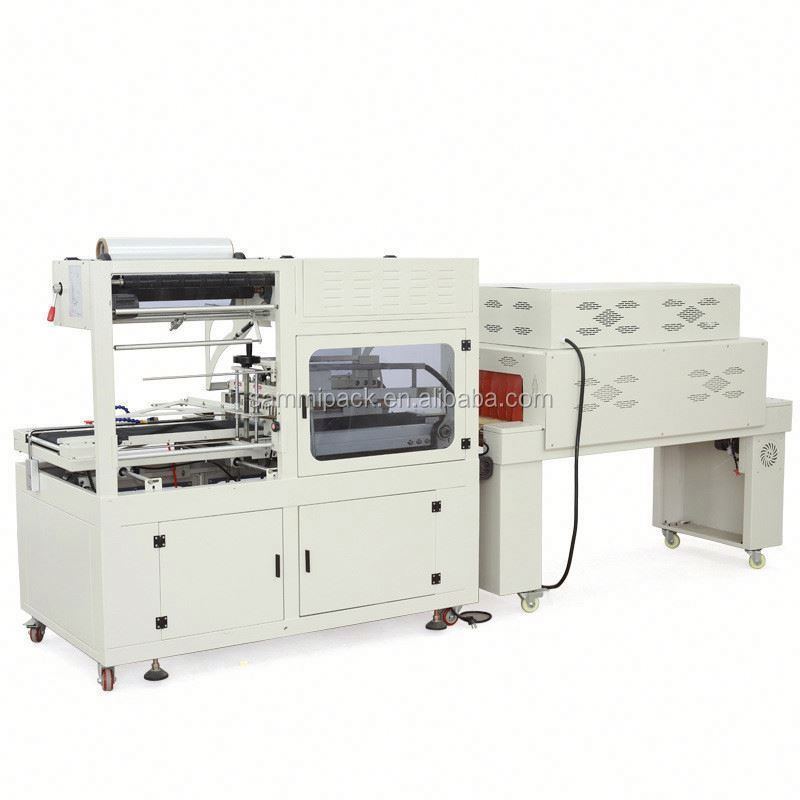

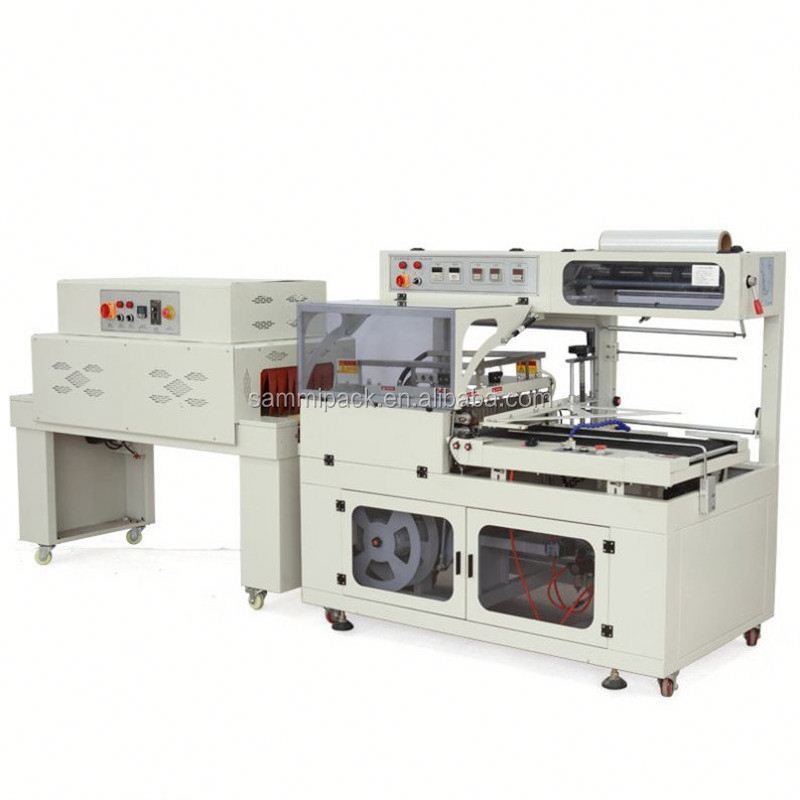

Machine pictures:



High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 0High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 2High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 4High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 6High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 8High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 10High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 12High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 14High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 16





High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 18





High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 20

Packaging & Shipping
Payment Term: T/T, L/C, Western Union, PayPal, Credit card, trade assurance
Package: export standard wooden case & cartons, honeycomb paperboard case
Delivery Time: 1-3 days after payment
transportation: by sea, by air, by express(DHL, FEDEX,TNT,4PX,ARAMEX,EMS etc)



Shipping Time:

 A, by express:about 5 days to arrive shipping destination,door to door service
B, by air: about 7 days to destination airport

C, by sea:15-30 days to destination port

High Speed L Type Sealing Cutting Heat Shrink Wrapping Machine 22

Our Services

1)  Warranty Time: 1 year, within this period we offer spare part replacement freely if there are any  Non-artificial damage on them.



2)  Quality: Quality of products will be strictly checked and every machine will be test to ensure it can works well before packaging.



3) Technical services: We will keep contacting with our customers all the time after selling out the machine. Please contact us without hesitation if you need any help on machines.



4)  File Services: We offer instruction manual and video to teach you how to using and testing machine.



5)   Accessories: We supply spare parts with competitive price after warranty time.
