High Quality Double Heads Pneumatic Piston Milk Filling Machine, Liquid Detergent,shampoo,bath Gel Filler(500-5000ml)

double heads pneumatic filling machine

milk filling machine 500-5000ml

automatic liquid detergent filler

Contacte-nos

Solicite um orçamento

High Quality Double Heads Pneumatic Piston Milk Filling Machine, Liquid Detergent,shampoo,bath Gel Filler(500-5000ml)

Detalhes do produto

机器产能:

500 garrafas por hora

Aplicação:

Bebidas

Tipo de Embalagem:

Caixa de papel

embalagem material:

Material de madeira

Grau de automação:

半自动

Tipo de Motor:

Eletrodomésticos

Pressão elétrica:

220V50Hz

Área de origem:

China

Marca:

Sammi.

尺寸 ((长×宽×高):

96*45*38 mm

período de conservação:

1 ano

核心卖点:

Alta precisão

Material de enchimento:

Outros, 牛奶, 水, óleo, suco

机械测试报告:

可提供

Verificação de saída de vídeo:

可提供

核心组件:

PLC

Aplicação:

Médico

Localização do Serviço Local:

Nenhum

Tipo de Marketing:

Novo produto 2020

类型:

装机

状态:

Novos

适用行业:

Produção, 食品饮料加工厂, 饭店, 食品店, 餐饮店

Localização do showroom (em quais países no exterior existem salas de amostra):

Nenhum

核心组件质保期:

1 ano

Peso:

40,0 quilogramas

Destacar:

double heads pneumatic filling machine

milk filling machine 500-5000ml

automatic liquid detergent filler

Termos de pagamento e envio

Quantidade de ordem mínima

1 conjunto

Preço

$400-600 / set

PRODUTOS CONEXOS

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Obtenha o melhor preço

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Obtenha o melhor preço

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Obtenha o melhor preço

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

Feature:

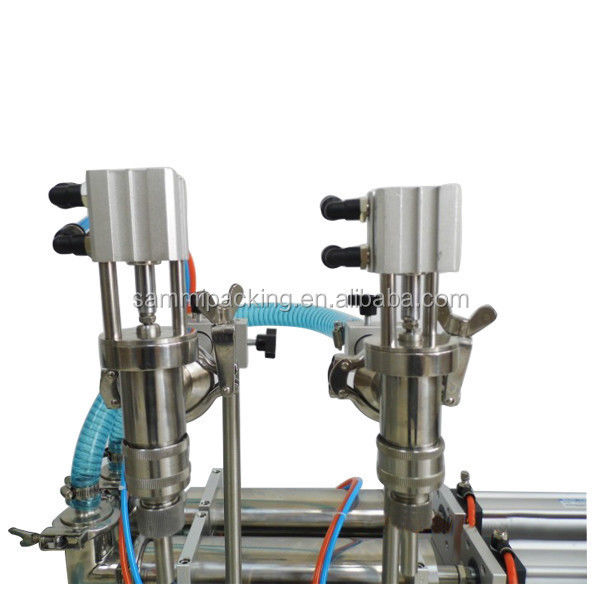

1.Reasonable design, compact shape, simple operation, partly adopt the German FESTO /Taiwan AirTac pneumatic components.
2. The contact part with the material is all made of 304 or 316 stainless steel, meet the GMP requirements and Food grade.

3. Filling volume, filling speed can be adjustable, filling accuracy is high.
4. Adopt the anti-drip, Anti-drawing and lifting filling device.

Application:

Widely used by industries in the Food & Beverage, Cosmetics, Personal

Care, Agricultural, Animal Care, Pharmaceutical, and Chemical fields

.And it is an ideal device for low viscosity fluid filling.

Principle

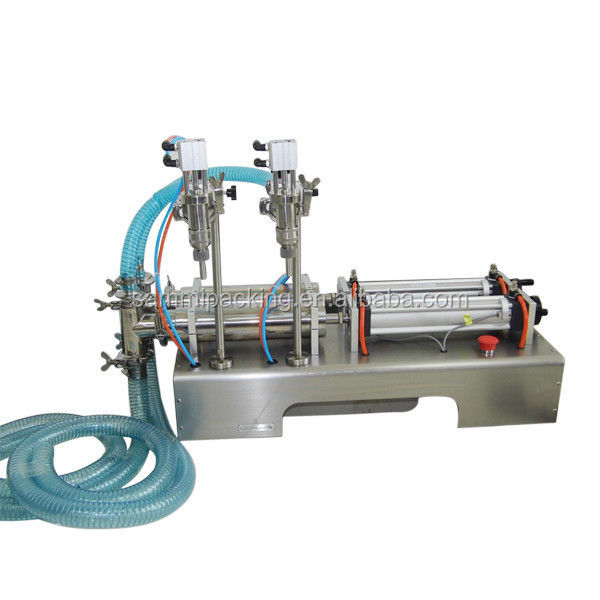

GFA series of semi-automatic filling machine piston filler. Driven by a cylinder and piston made from materials with FIVE-way valves control the flow of materials, and magnetic reed switch control cylinder itinerary can be regulated filling volume.
. Rational design of the aircraft, model compact, easy to operate, are used pneumatic part of Germany and Taiwan AirTac FESTO the pneumatic components.
. Some contact materials are used 316 L stainless steel materials, in line with the GMP requirements.
. Filling volume and speed of filling can be arbitrary regulation, filling high accuracy.

Technical Parameters:

Machine model	GFA-W-2Y -100	GFA-W-2Y -300	GFA-W-2Y -500	GFA-W-2Y -1000	GFA-W-2Y 3000	GFA-W-2Y -5000
Filling speed	10-35n/min(take water for example)
Filling range	10-100ml	30-300ml	50-500ml	100-1000ml	300-3000ml	500-5000ml
Air pressure	0.4~0.6mpa
Filling error	±1%
Machine size	806(L) × 180(W) ×690(H)mm	880(L) ×230(W) ×665(H)mm	880(L) × 230(W) ×665(H)mm	1065 (L) ×230(W) ×665(H)mm	1250(L) ×400(W) ×300(H)mm	1390(L) ×420(W) ×380(H)6mm
Machine weight	30 Kg	35Kg	40Kg	45Kg	60 Kg	80 Kg

Machine can offer customized according to customer request
