High Efficiency 2 Heads Automatic Cream Paste Filling Machine
Product description:
This series cream filling machine is used for Production Line,Suitable for filling jam, honey, meat paste, ketchup, tomato paste and peanut butter and so on. Especially for filling liquid with the PM and paste.
widely apply in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades.it is simple and reasonable in design, high in accuracy and easy in operation.The machine is safe and with the personalized design, can meet the modern enterprises' requirements.
This machine is automatic double head piston paste and liquid filling machine, it is safe to operate. This machine has two filling heads in-phase, improving the work efficiency. And the pneumatic part adopts the pneumatic components of Germany FESTO or aiwan's AirTac. The part contacting materials is made of 304 or 316L stainless steel. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device. Can fill different kinds of bottles,filling range from 5ml-5000ml can be optional.
Features:
1.Microcomputer setting, PLC control, touch screen operation, it is highly automated, easy to operate with stable performance 2. High safety factor, the liquid filling machine can stop automatically if there is low pressure, no filling, it can work alone or work together with capping labeling machines. 3. The part which touches the liquid is made of 304 or 316 stainless material , meet with GMP requirement. 4.It can be customized the filling heads quantity to 2/4/6 heads. , the product quantity can be controlled according to customer's requests.
Technical Parameters:
Machine model
SM-100-2Y
SM-300-2Y
SM-500-2Y
SM-1000-2Y
SM-2500-2Y
SM-5000-2Y
Filling range
(10-100ml)×6
(30-300ml)×6
(50-500ml)×6
(100-1000ml)×6
(1000-2500ml)×6
(1000-5000ml)×6
Air pressure
4-6kg/cm2
4-6kg/cm2
4-6kg/cm2
5-8kg/cm2
5-8kg/cm2
5-8kg/cm2
Filling speed
30-50bottles/min
30-50bottles/min
30-50bottles/min
30-50bottles/min
30-50bottles/min
20-40bottles/min
Filling precision
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%
Liquid ≤±1%, paste≤±2%

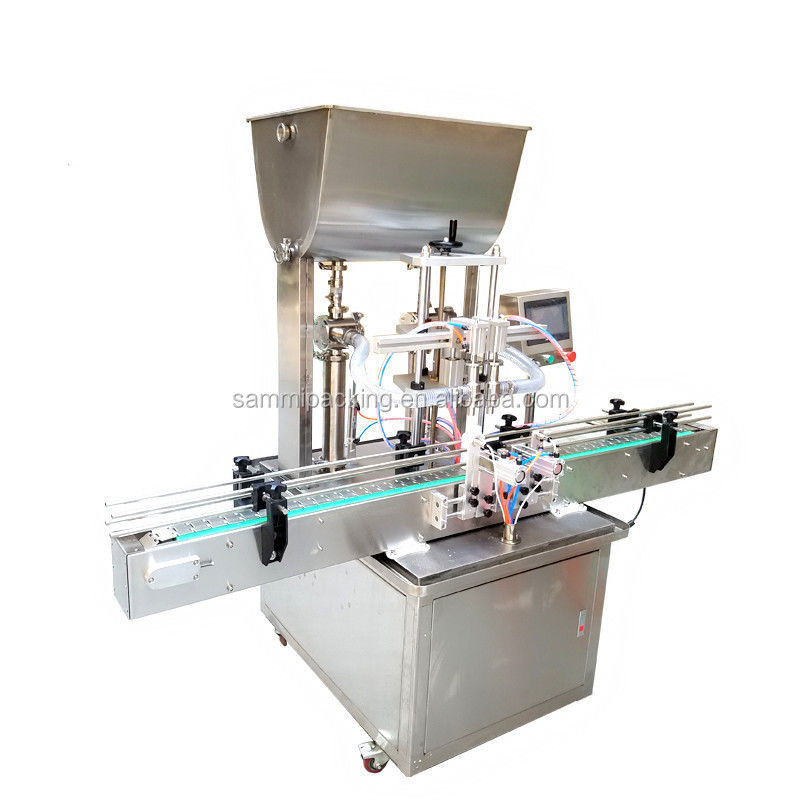

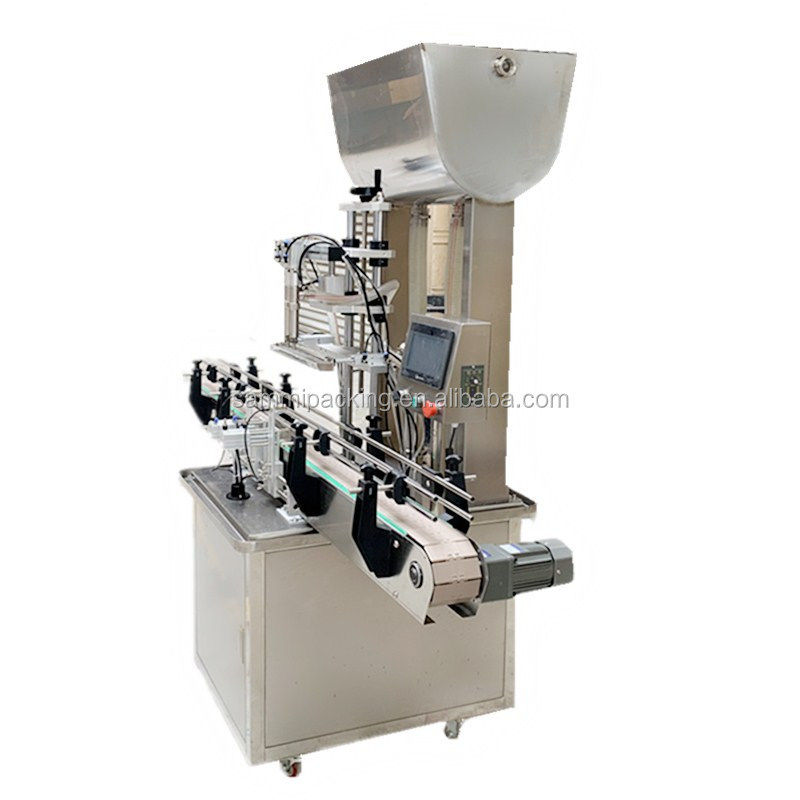

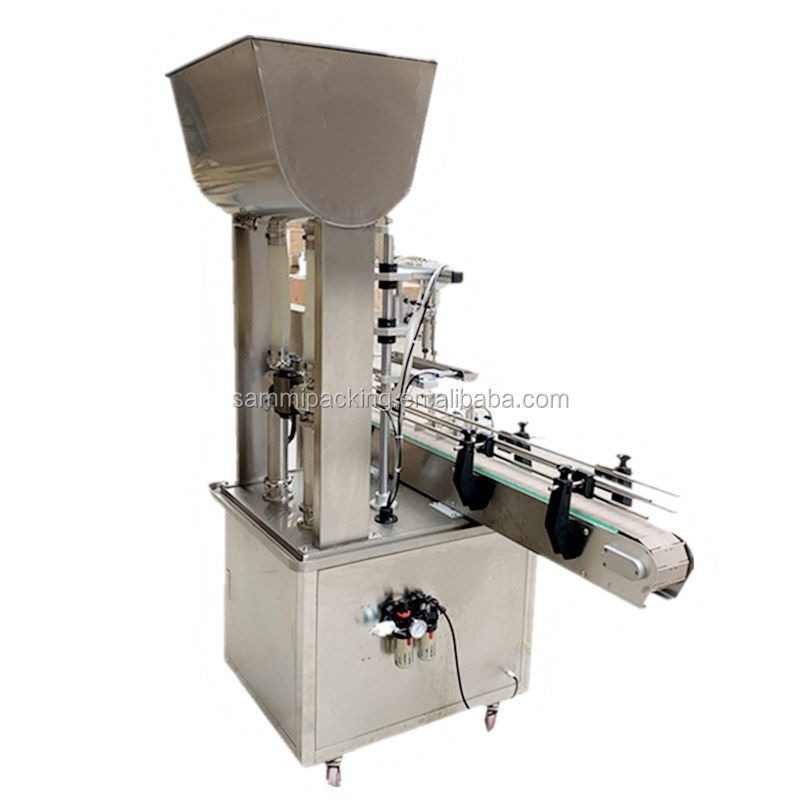

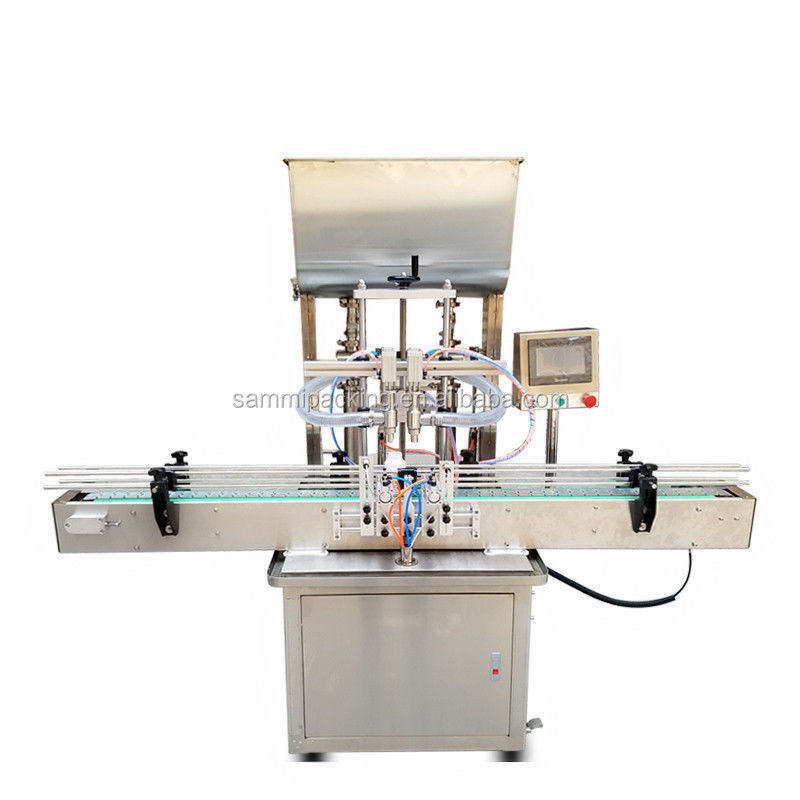

Pictures of automatic cream paste filling machine
Suitable filling products:
About Us
Dongguang Sammi Packing Machine Co.,Ltd was found in 2010, we are the professional manufacturer of packaing machinery,specialized in filling machine, capping machine, coding machine, sealing machine,labeling machines, packing machines etc,widely apply in food,cosmetic, pharmacy, beverage and chemical industries. With expertise and inside knowledge of packaging machinery, we provide our clients with additional value by supplying top quality, high efficient packaging equipment base on competitive price. Our product obtains high reputation from customer. They sell well in mainland China, as well as many countries in Europe, America, Southeast Asia, the Middle East, because of high quality, lower prices, fast speed delivery and satisfying services.
