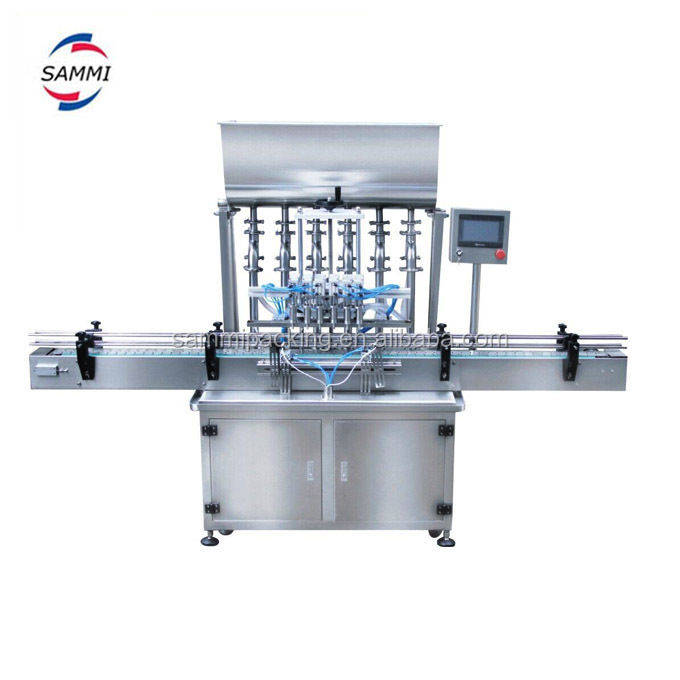

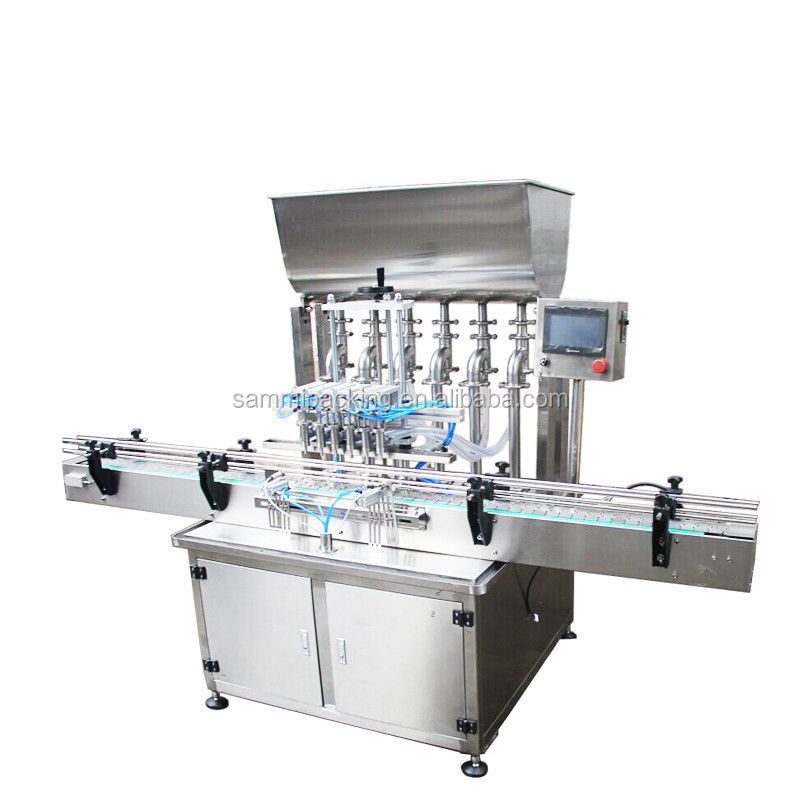

6 Nozzles Automatic Filling Machine/ 6 Head Linear Automatic Cream Filler

6 nozzle automatic filling machine

linear automatic cream filler

6 head automatic packaging machine

Contacte-nos

Solicite um orçamento

6 Nozzles Automatic Filling Machine/ 6 Head Linear Automatic Cream Filler

Detalhes do produto

Aplicação:

食品, 饮料, 化学品 (alimentos, bebidas, produtos químicos)

Tipo de Embalagem:

易拉??, 瓶, 自立袋, 包, Pouch

embalagem material:

Material de madeira

Grau de automação:

Total automático

Tipo de Motor:

气动

Pressão elétrica:

220 V

Área de origem:

Guangdong, China

Marca:

Sammi.

尺寸 ((长×宽×高):

2000*550 * 1800mm

período de conservação:

1 ano

核心卖点:

Alta produtividade

Material de enchimento:

Água, óleo, suco

Precisão de enchimento:

1, Líquido ≤ ± 1%, Pastoso ≤ ± 2%

机械测试报告:

可提供

Verificação de saída de vídeo:

可提供

核心组件:

PLC

Peso (KG):

500

填充范围:

(10-100 ml) * 6

pressão atmosférica:

4-6Kg/cm2

Velocidade de carregamento:

30-50 frascos/minuto

Conservar o tempo:

1 ano

Cabeçalho de Trabalho:

质量:

Conforme os padrões de exportação

类型:

Máquina de enchimento

适用行业:

制造工厂 (fabricação)

Corecomponentes de manutenção:

1 ano

Destacar:

6 nozzle automatic filling machine

linear automatic cream filler

6 head automatic packaging machine

Termos de pagamento e envio

Quantidade de ordem mínima

1 conjunto

Preço

$5,000-6,500 / set

PRODUTOS CONEXOS

Cheap Price Ultrasonic Cosmetic Tube Sealer/stainless Steel Compact Toothpaste BB Cream Hose Sealing Machine with CE

Obtenha o melhor preço

Hot Sale Ultrasonic Tail Toothpaste BB Cream Tube Sealing Machine/Low Cost Soft Tube Sealer for Small Business with CE

Obtenha o melhor preço

Economical Ultrasonic Tube Sealing Machine/ Customized Plastic Soft Tubes Sealer for Cosmetic, Food with Cutter

Obtenha o melhor preço

Electric Driven Touch Screen PET Can Sealing Machine Intelligent Juice Soda Can Seamer Machine for Beverage and Food Industry

Obtenha o melhor preço

Contacte-nos

Contacte agora

Descrição do produto

6 head liquid filling machine

Product Description

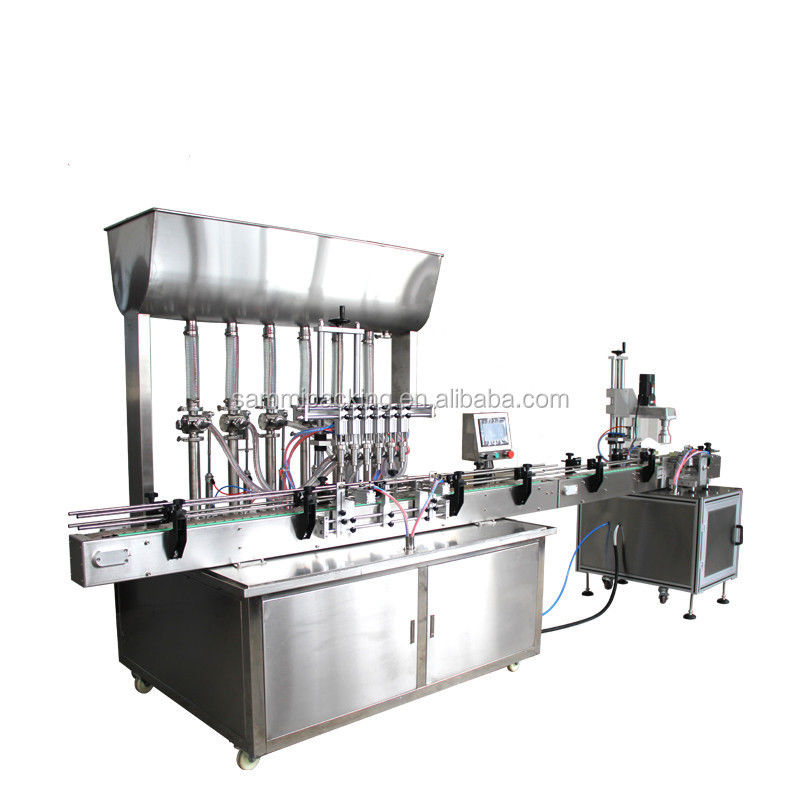

Automatic Liquid Filling Production Line: quick and accurate filling with Taiwan's AirTac component.

Automatic Liquid Filling Production Line 6 Nozzle:

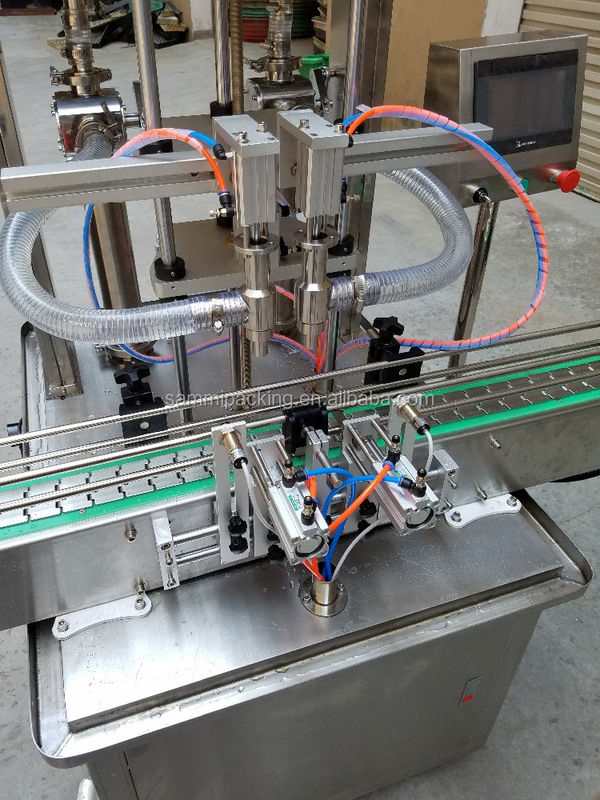

This Model is special for Filling Production Line, and it is simple and reasonable in design, high in accuracy and easy in operation. Suitable for filling liquid in the industries of pharmaceutics, daily chemicals, foodstuffs, cosmetics, pesticide and special trades. With no need for power supply, the machine is safe and with the personalized design, can meet the modern enterprises' requirements. This machine is the semi-automatic double piston liquid filling machine, working under the state without electricity, it is safer to operate. This machine has two filling heads in-phase, improving the work efficiency. And the pneumatic part adopts the pneumatic components of Germany FESTO and Taiwan's AirTac. The part contacting materials is made of 316L stainless steel. With adjustment handle of filling volume, the filling speed can be adjusted at will, with high filling accuracy. Filling head adopts anti-leakage, anti-pull and with diving filling device.

Parameter of 6 head filling machine

Machine model	SM-100-6	SM-300-6	SM-500-6	SM-1000-6	SM-2500-6	SM-5000-6
Filling range	(10-100ml)×6	(30-300ml)×6	(50-500ml)×6	(100-1000ml)×6	(250-2500ml)×6	(500-5000ml)×6
Air pressure	4-6kg/cm²	4-6kg/cm²	4-6kg/cm²	5-8kg/cm²	5-8kg/cm²	5-8kg/cm²
Air pressure	4-6kg/cm²	4-6kg/cm²	4-6kg/cm²	5-8kg/cm²	5-8kg/cm²	5-8kg/cm²
Filling speed	30-50bottles/min	30-50bottles/min	30-50bottles/min	30-50bottles/min	30-50bottles/min	20-40bottles/min
Filling precision	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%	Liquid ≤±1%, paste≤±2%
